Teak Wood Badminton Court Flooring

Teak Wood Badminton Court Flooring Trade Information

Detailed Technical Specifications:

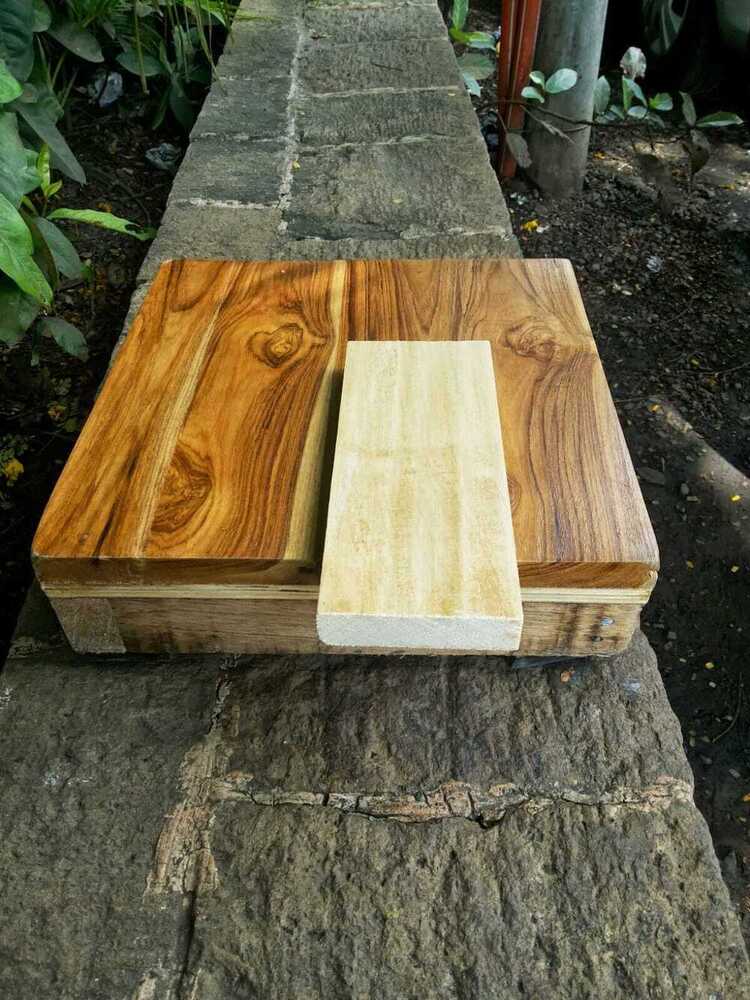

Surface Board (Top Layer):
- Material: High-quality kiln-seasoned and treated teak wood.
- Thickness: 21mm (standard); width 5590 mm; random lengths.
- Profile: Tongue-and-groove with finger-lock edges for interlocking.
- Bottom: Air-pass ventilation grooves included.
- Finish: Water-based PU lacquer (non-skid matte finish).
Understructure (Sub-floor):
- Runners: Treated Pine wood, Spruce, or Fir, 70mm x 45mm sleepers.
- Cushioning: 10mm to 19mm thick EPDM resilient rubber air-cushion pads.
- Layout: Runners spaced at ~350mm center-to-center in one direction.
Installation System:
- Vapour Barrier: 1-2 ml (100200 micron) plastic sheet placed on leveled IPS sub-floor.
- Fixing: Surface boards screwed to runners through the tongue; ends locked using finger joints.
- Expansion Gap: 1520mm gap provided at the perimeter (walls/tiled areas).
Performance Metrics:
- Shock Absorption: High (ensured by EPDM pads).
- Surface Friction: Compliant with BWF standards.

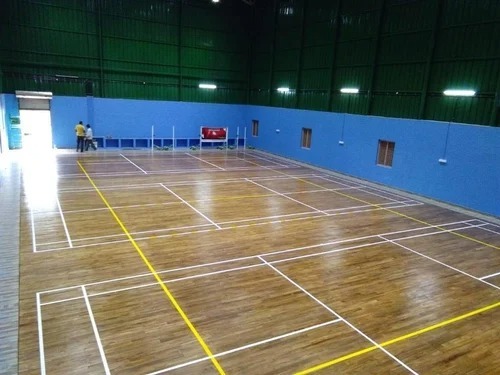

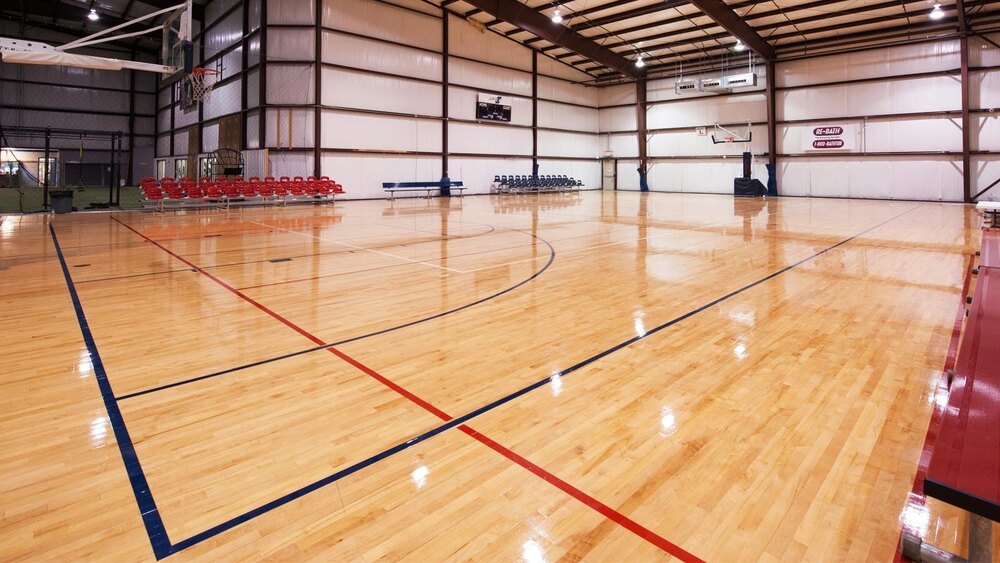

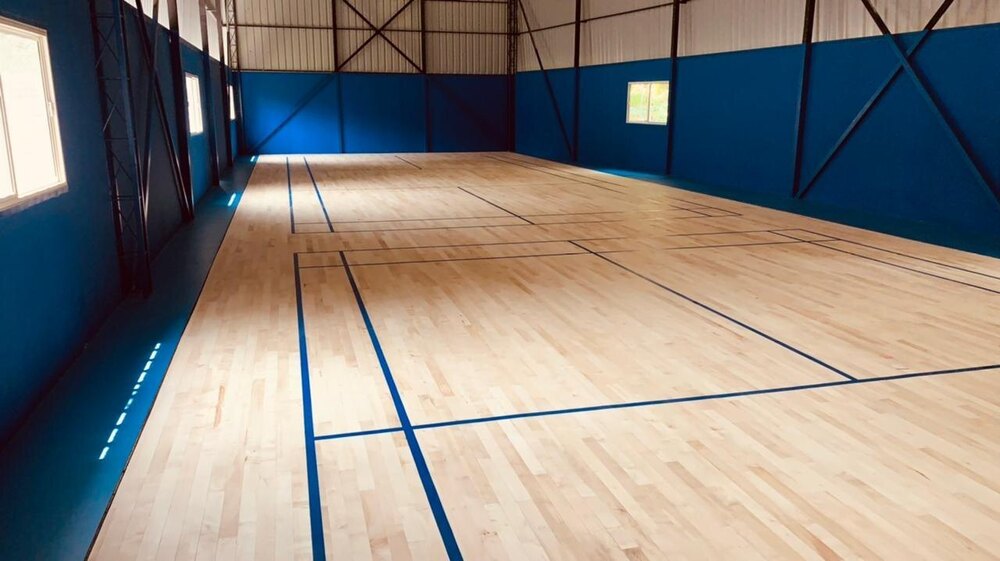

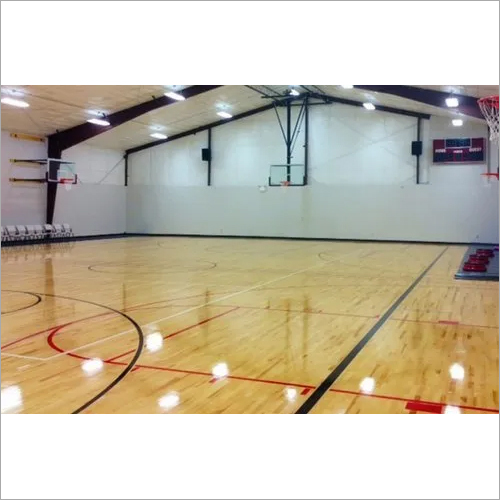

- Application: Indoor stadiums/multipurpose halls.
Other Details:
- Warranty: Generally 5 years.
- Maintenance: Machine sand and re-coat with PU lacquer as needed
